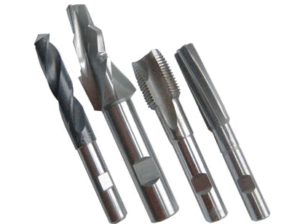

Screw-in Cartridge Cavity Manufacturing Tools
SMT
- Designed to achieve standardization based on each thread size
- Reduce the amount of tooling required to cover the valve range
- UNF based cartridges are made to fit the ISO recommendations for standard cavities
- Drawings for standard tools are available upon request
- Special tools can be supplied, consult factory for cost and leadtime
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| SMT | 0.00 | 0.00 | 0.00 | HA 0019 |
